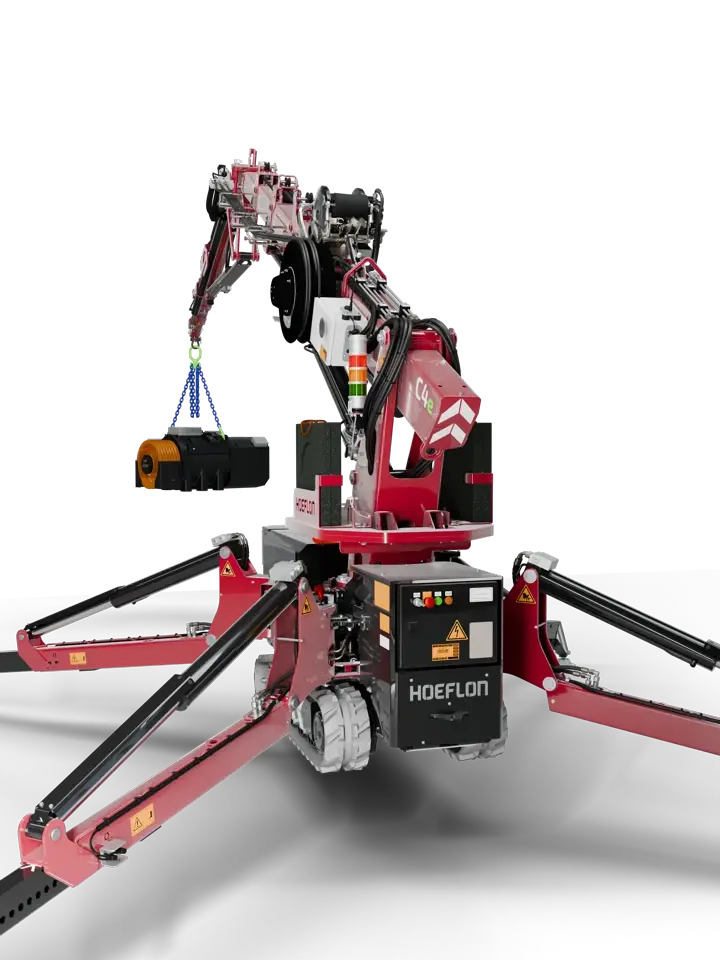

The most compact crane
The C4e has a maximum lifting capacity of 2350 kg. Thanks to its compact dimensions and low weight. this crane can easily reach difficult-to-access areas. such as basements. upper floors and rooftops. Furthermore. the mini crane is easy to transport on a trailer.
Hoeflon C4e

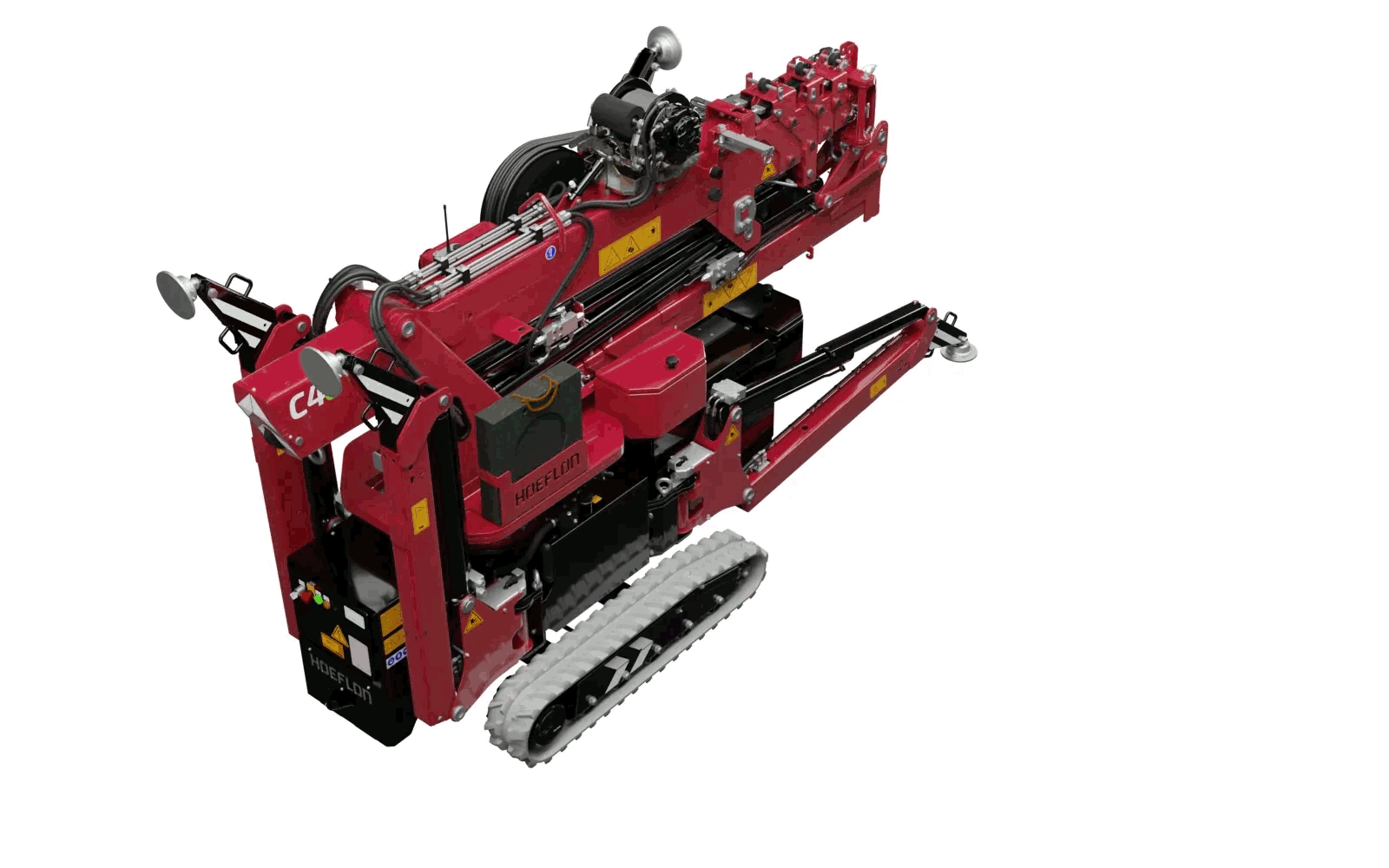

Flexible positioning
Hydraulically extendable and adjustable legs
The legs of the C4e are hydraulically extendable. so you can utilise the maximum lifting capacity in any situation. Moreover. the legs are hydraulically adjustable. ensuring you can always stabilise in the optimal position and perfectly set up the crane at any worksite.

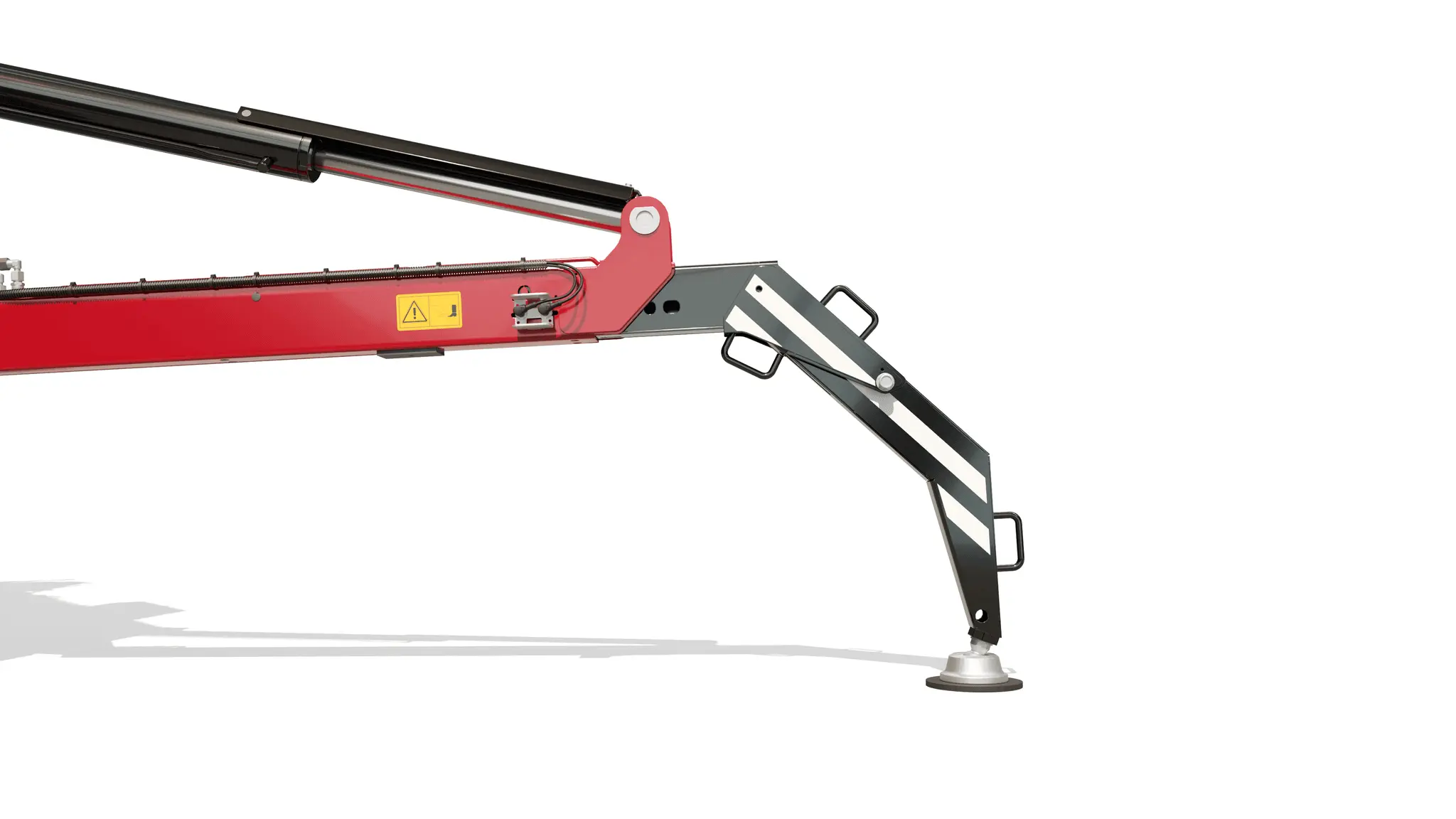

Folding legs
Span over obstacles and height differences
The C4e is equipped with folding legs that are normally low to the ground and can be extended beneath obstacles. If you need to stabilise over an obstacle. you can easily extend the folding leg. This feature is also ideal for use on uneven terrain. where a height difference of up to two metres can be accommodated.

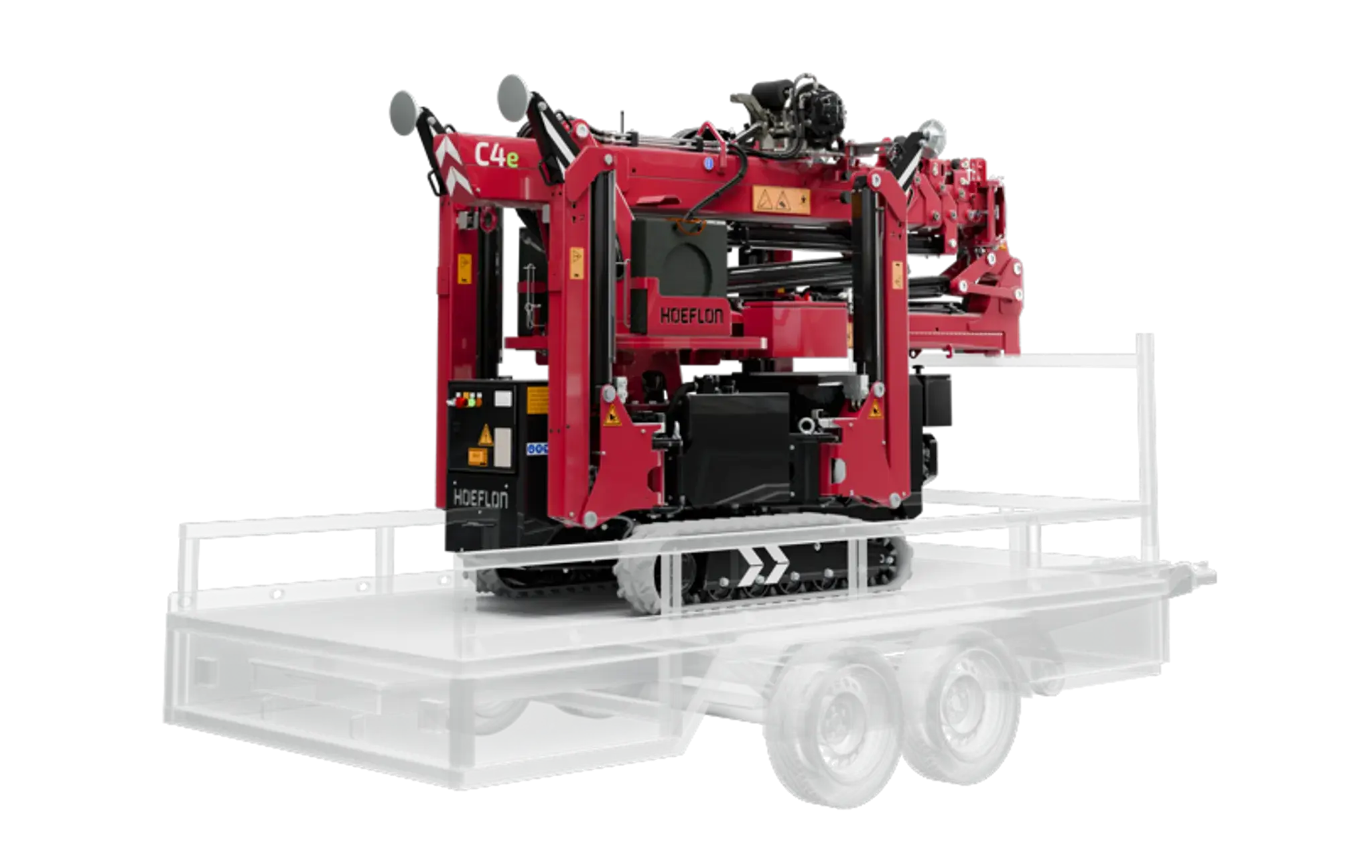

Compact design
Easy to transport on a trailer
Weighing just 2150 kg. The C4 is easy to transport with a trailer. pick-up or heavy-duty commercial van.
2350 kg
11,7 m & without options 7,3 m
230V
360°
1900 kg
2150 kg
11.7 m
3000-1000 kg
3.04m x 0.75m x 1.95m, 3,04m x 0,75m x 1,95m
0.59 kg/cm2
-5° to 83°
360°
144 kg
144 kg
15.1 m
20°
