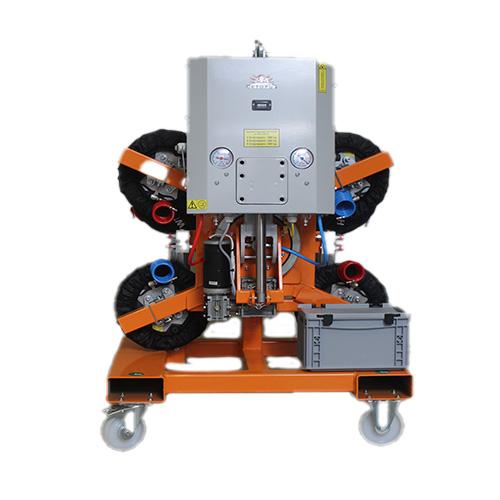

Popular Electric Spider Glass Lifter with Precision Control
Our most popular electric spider glass lifter has a maximum capacity of 600 kg. The vacuum system and movements (rotation and tilting) are operated via radio remote control. This allows for controlled glass placement and reduces the need for manual labor during installation.
Compatible with Additional Accessories
The lifter can be equipped with an adapter plate, allowing easy mounting of accessories such as a spreader bar, C-hook, or swivel adapter.
Blow-Off Function (Optional)
An optional blow-off function makes it easier to detach the glass lifter from the glass after installation.
Customizable Frames for Various Applications
The glass lifter can also be fitted with:
-
a frame for curved glass placement,
-
a depth frame for glass already mounted in profiles,
-
or a full frame for sliding windows.
Efficient and Safe Transport
Transport is facilitated by a convenient trolley and a custom-made protective cover, keeping everything dry and safe during transit.
Wirth GL-MF600
Technical specifications
Downloads
C-hook 750
What is a C-hook?
A C-hook is a lifting device in the shape of the letter “C,” designed for safely and efficiently lifting loads such as glass plates, metal coils or other heavy objects. The design allows for lifting loads in situations with limited space or obstacles, such as roof overhangs or facades.
Applications of C-hooks
Glass installation:
C-hooks are often used in combination with vacuum lifters to hoist glass panes over obstacles and precisely position them during façade installation.Coil handling:
In industrial environments, C-hooks are used to transport metal coils.Limited space:
Due to their shape, C-hooks are ideal for use in restricted areas where traditional lifting gear cannot fit.
Features
Shape:
The C-shape allows for lifting without the hook obstructing the load.Capacity:
C-hooks are available in various capacities, ranging from a few hundred kilograms to several tons, depending on the model and manufacturer.Material:
Typically made from high-grade steel for strength and durability.
Technical properties
Capacity
750 Kg
Own weight
85 kg
