The unique all-rounder

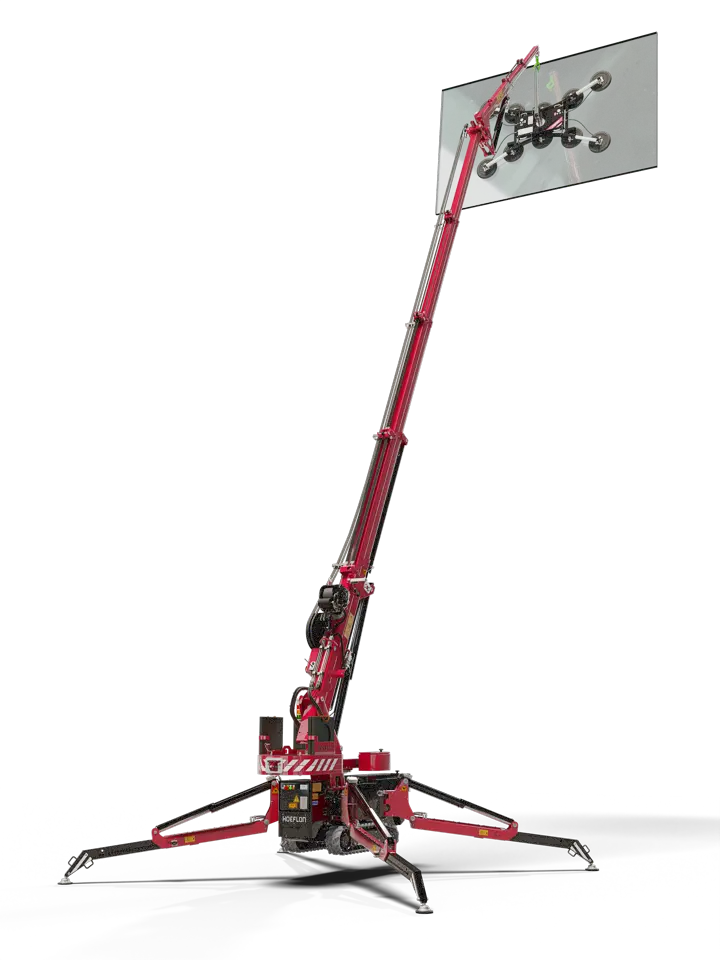

The C6e mini crane is the all-rounder among Hoeflon's compact cranes. With a maximum lifting capacity of 3000 kg and a lifting height of up to 16 metres. this crane delivers impressive performance. The 4.3-metre fly jib increases flexibility and reach. Thanks to its swivelling outriggers. the crane always remains stable. What makes this crane unique is its ability to lift more than its own weight. The C6e is perfect for installing glass and precisely positioning steel beams.

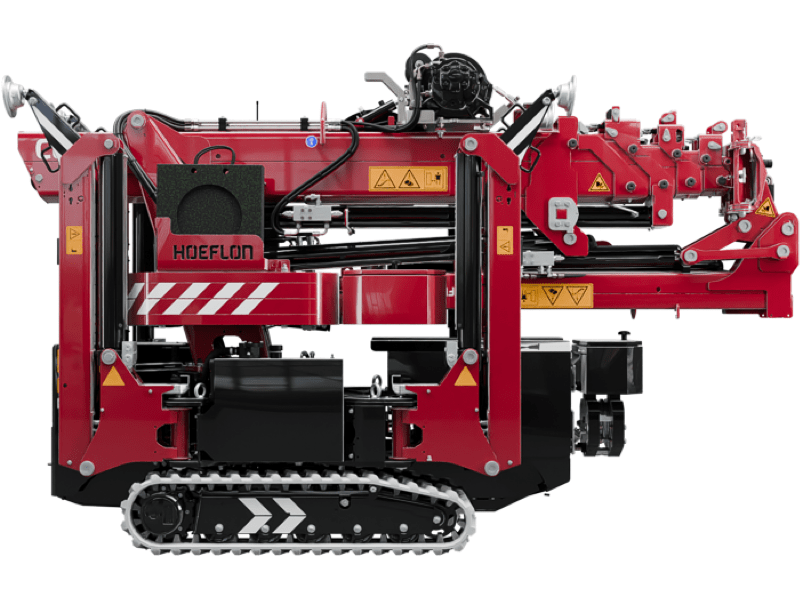

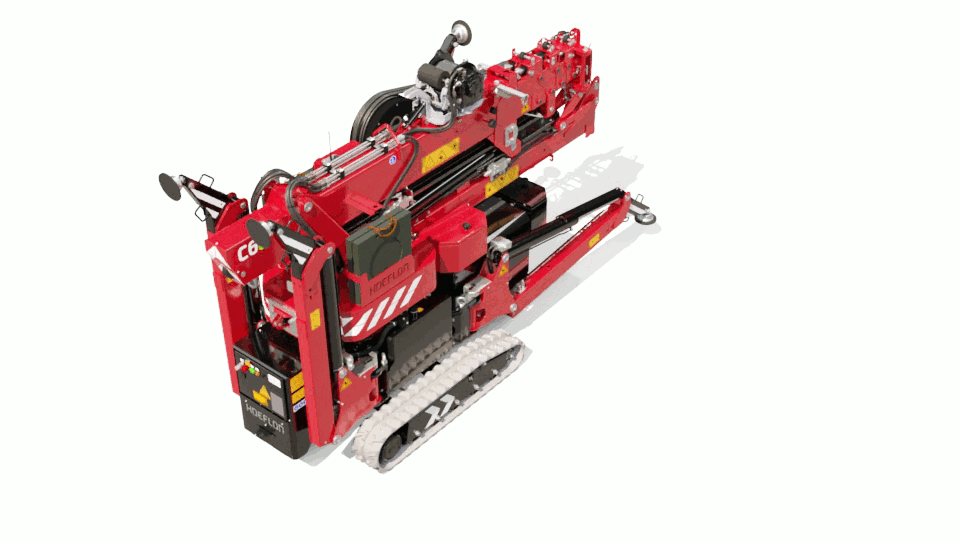

Hoeflon C6e

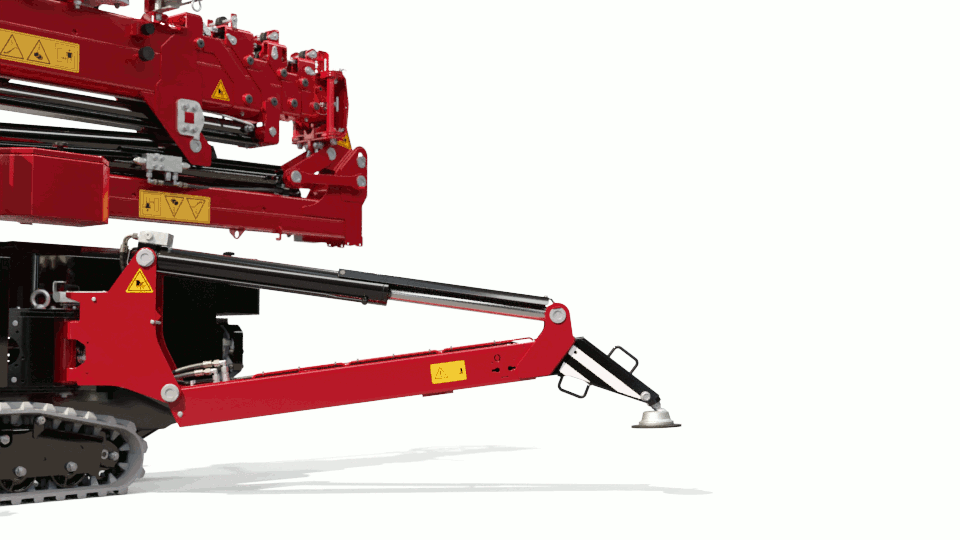

Endless positioning
Hydraulically extendable and adjustable legs
The legs of the C6e are hydraulically extendable. so you can utilise the maximum lifting capacity in any situation. Moreover. the legs are hydraulically adjustable. ensuring you can always stabilise in the optimal position and perfectly set up the crane at any worksite.
Span over obstacles and height differences
Folding legs
The C6e is equipped with folding legs that are normally low to the ground and can be extended beneath obstacles. If you need to stabilise over an obstacle. you can easily extend the folding leg. This feature is also ideal for use on uneven terrain. where a height difference of up to two metres can be accommodated.

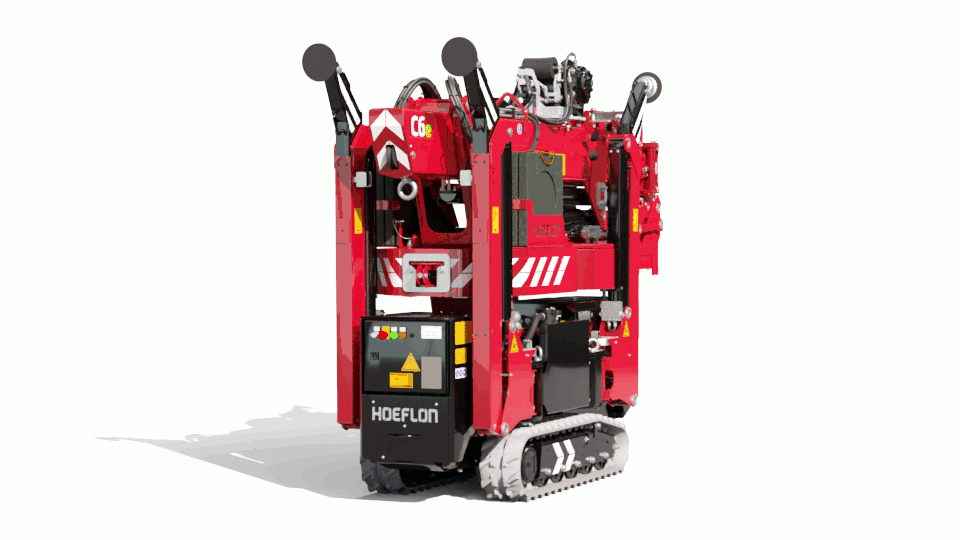

Effortless manoeuvring
Adjustable track width
With its compact dimensions. the C6e can easily pass through narrow passages. Tight spaces are no challenge for this crane. Thanks to the adjustable track width. navigating and manoeuvring on any terrain is effortless.

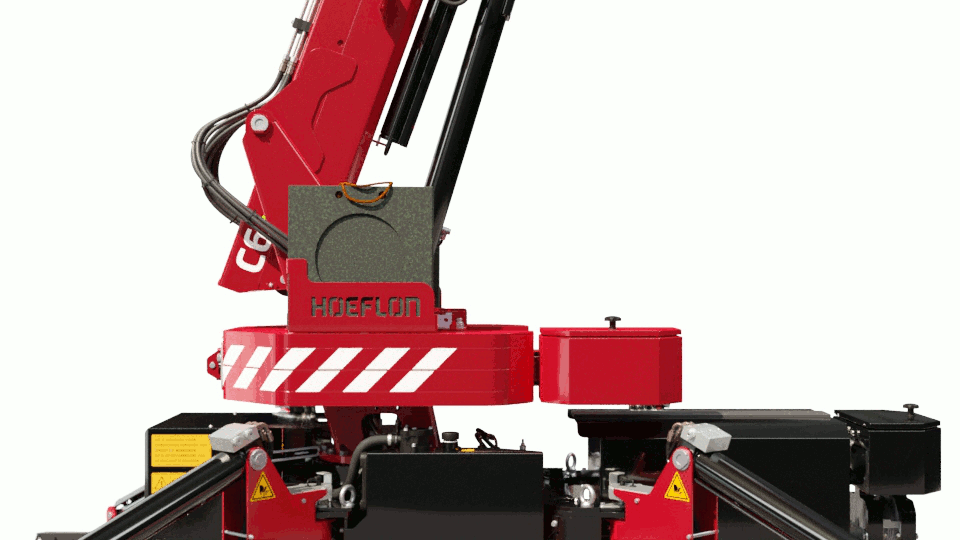

Maximum capacity
Extendable and retractable counterweight
The counterweight of the C6e is hydraulically extendable and retractable. The crane's capacity increases when the counterweight is extended. The crane is equipped with an intelligent sensor that automatically detects whether the counterweight is extended or retracted. improving operational efficiency and safety.

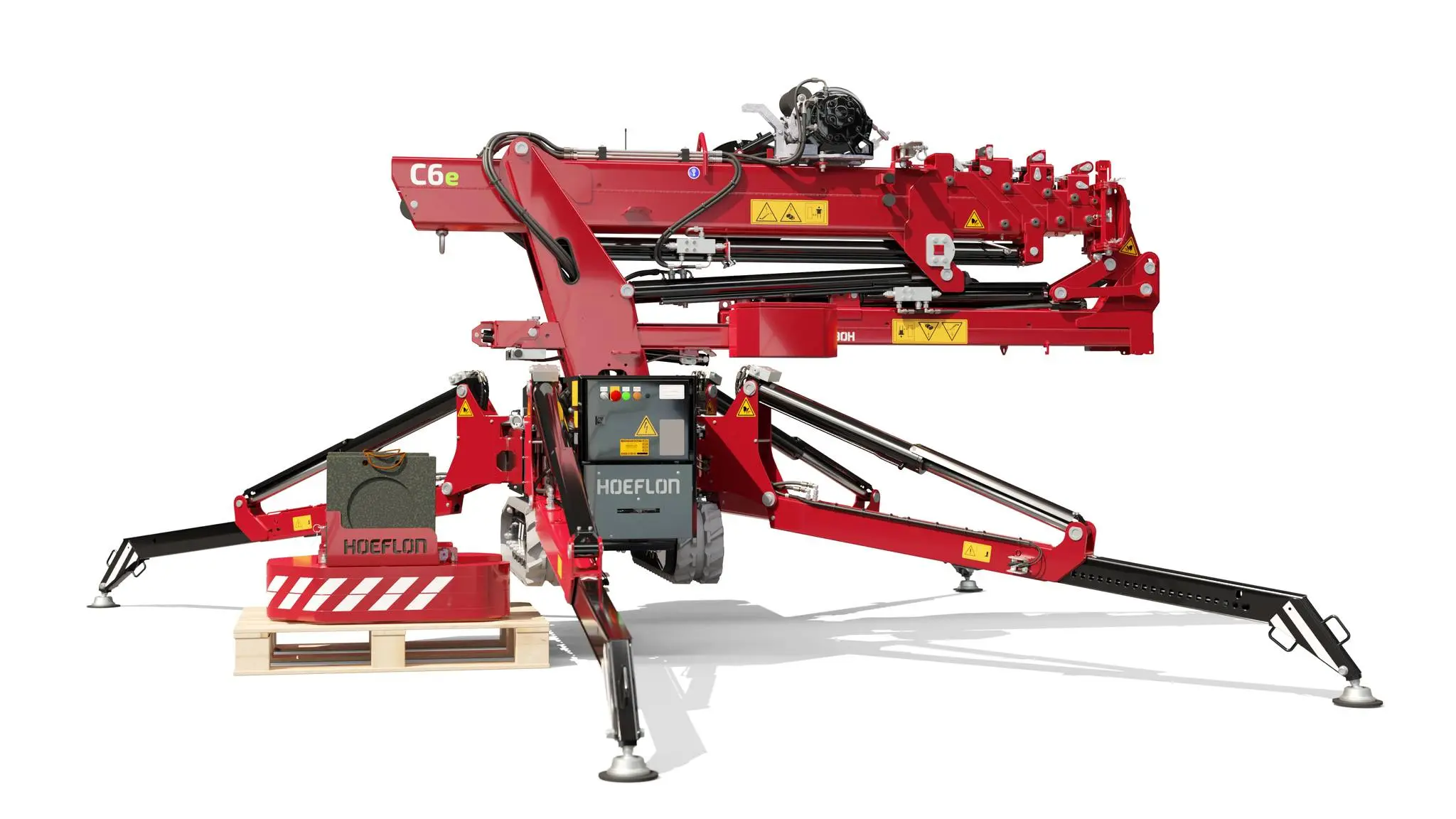

Reduce weight
Removable counterweight
The counterweight of the C6e is removable. allowing you to reduce the crane's weight by as much as 600 kg. This provides added flexibility in operation and transport. especially in situations where weight is a critical factor.

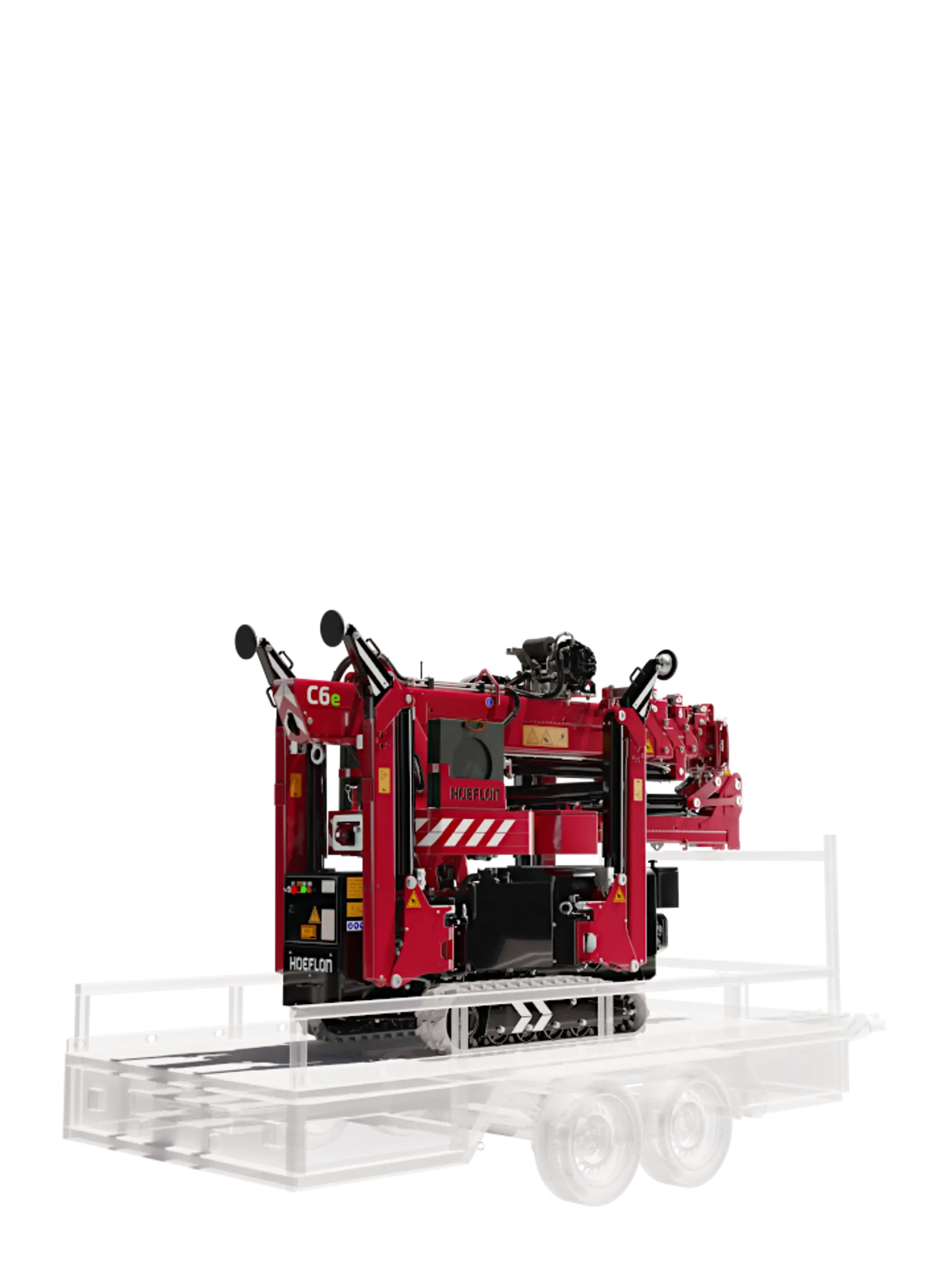

Compact design
Easy to transport on a trailer
Weighing just 2120 kg the C6 is easy to transport with a trailer. pick-up or heavy-duty commercial van.
3000 kg
13.7 m & without options 9.25 m
230V
360°
2120 kg
2850 kg
13.7 m
3.2m x 0.77m x 2m
2.98m x 0.77m x 1.88m. 4.15m x 0.8m x 2.07m
0.79 kg/cm2
-5° to 83°
360°
210 kg
210 kg
16 m
15° forward & 23° backward
