Powerful Glass Manipulator for Heavy Elements

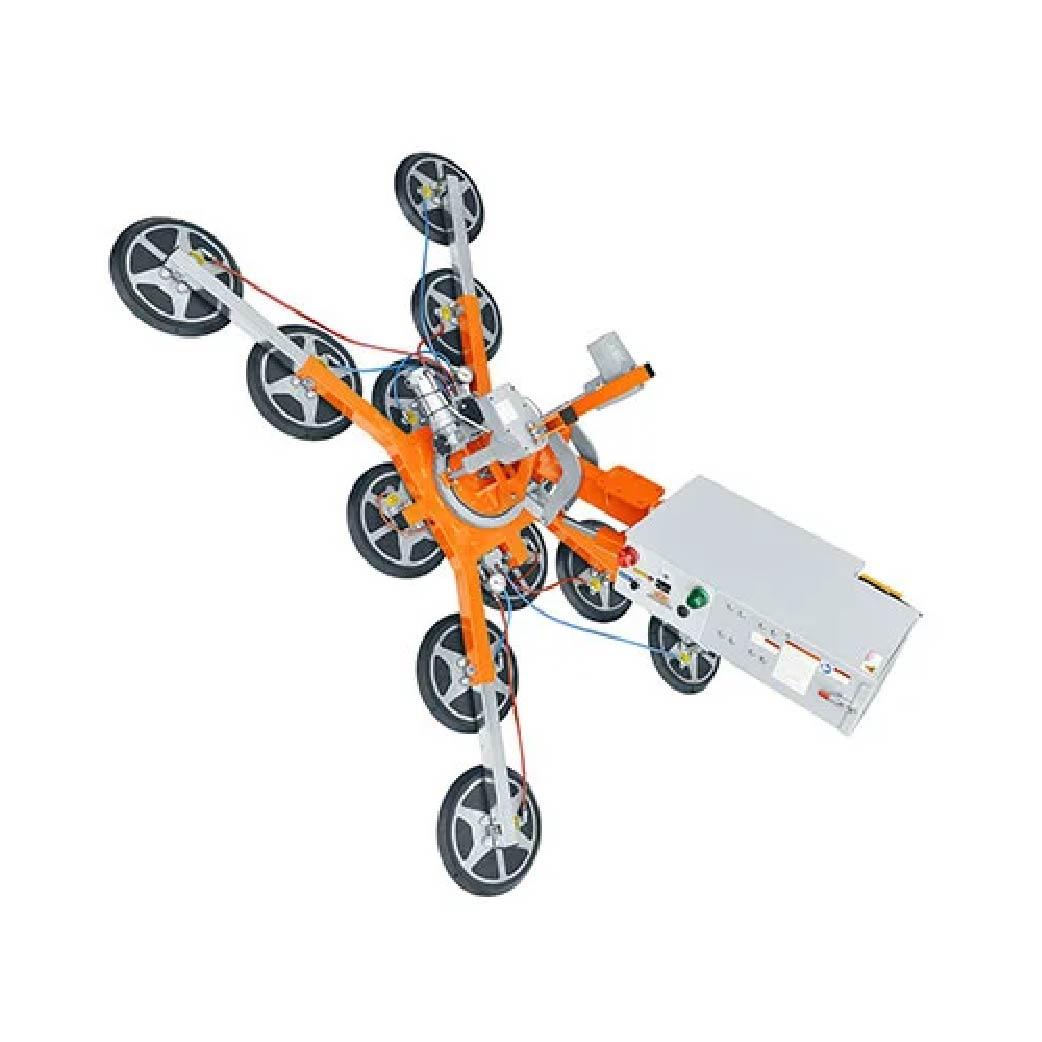

The Wirth GL-CC1200 glass manipulator is engineered for the professional installation of flat glass panels up to 1200 kg. It is radio-controlled and compatible with all types of truck-mounted cranes, offering extremely precise handling for accurate placement.
Versatile Movement Capabilities
-
Electric rotation up to 360°
-
Hydraulic tilting up to 120°
-
Electric horizontal tilting up to 40°
Safe Dual Vacuum System
The vacuum is generated by a pump powered by a rechargeable battery. The GL-CC1200 comes standard with a dual vacuum system, which includes:
-
check valves
-
vacuum reservoirs
-
pressure regulators
-
vacuum gauges
-
suction pads
Each vacuum circuit is color-coded (red and blue) for easy identification. Once both tanks reach sufficient vacuum, the system is ready for use. Real-time vacuum levels are monitored via two gauges.
Key Features
-
2 independent vacuum circuits with double safety
-
Integrated vacuum reservoirs
-
Continuous monitoring of vacuum and power supply
-
Visual and audible warning signals in case of anomalies
-
Operates on a high-capacity 24V rechargeable battery
-
Compliant with DIN EN 13155
Wirth GL-CC1200
Technical specifications
Downloads
C-hook 750
What is a C-hook?
A C-hook is a lifting device in the shape of the letter “C,” designed for safely and efficiently lifting loads such as glass plates, metal coils or other heavy objects. The design allows for lifting loads in situations with limited space or obstacles, such as roof overhangs or facades.
Applications of C-hooks
Glass installation:
C-hooks are often used in combination with vacuum lifters to hoist glass panes over obstacles and precisely position them during façade installation.Coil handling:
In industrial environments, C-hooks are used to transport metal coils.Limited space:
Due to their shape, C-hooks are ideal for use in restricted areas where traditional lifting gear cannot fit.
Features
Shape:
The C-shape allows for lifting without the hook obstructing the load.Capacity:
C-hooks are available in various capacities, ranging from a few hundred kilograms to several tons, depending on the model and manufacturer.Material:
Typically made from high-grade steel for strength and durability.
Technical properties
Capacity
750 Kg
Own weight
85 kg
